Machinery

Wire Extrusion PressMachinery This is a type of horizontal hydraulic press machine that converts cylindrical billets into a lead wire. As it has a complete automatic machinery system, the winding and extrusion stages run simultaneously via a special sensor on the wire winder. PropertiesProperties Tonnage  300 Tons Type Hydraulic Overall Dimensions (mm)  4000*1500*2500 Power Supply

Priming MachineMachinery Priming Machine is a rotary ac1on loading machine which is used to assemble pistol and small rifle components. It is a fully manual machine in which the movement of each sta1on is moved by cams. Namely, there is no pneuma1c part its system. PropertiesProperties 3 kW PLC Control 55 pcs/min Capacity Company presentation

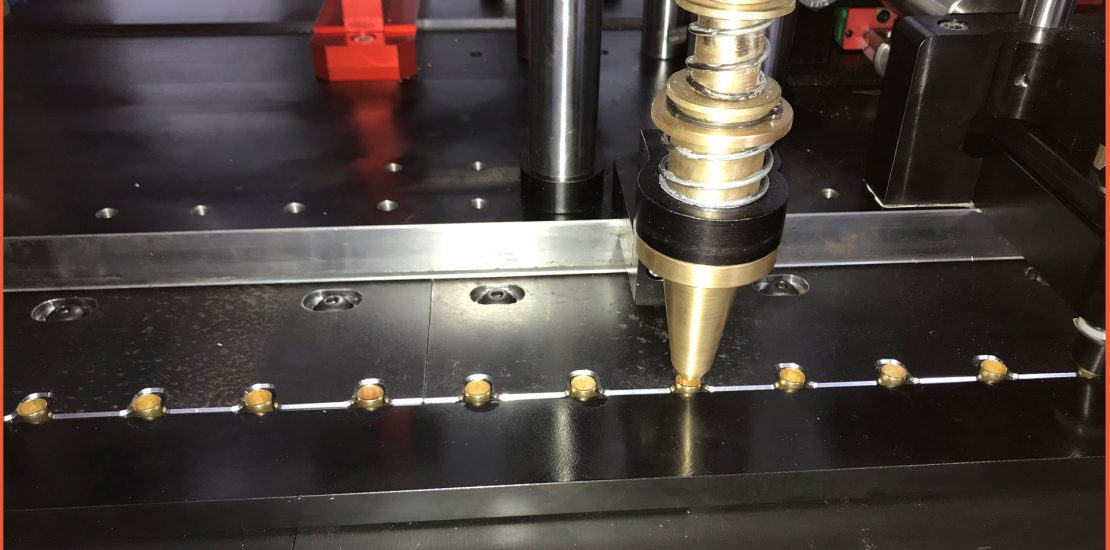

Loading MachineMachinery It is a rotary motion machine specially designed for assembling gun powder, prime cases and projectiles. It’s got dual actions at each stroke which result in double production. PropertiesProperties 3,5 kW PLC Control 120-240 pcs/min Capacity 6 bar air pressure Company presentation how can we help you? Contact us at the BAF Machine

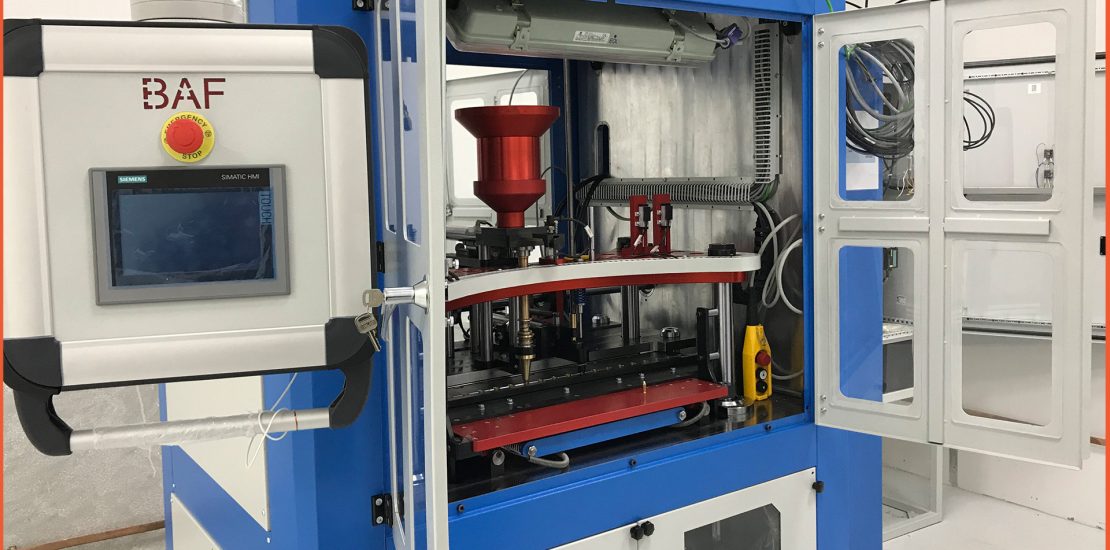

Primer Inserting & Loading MachineMachinery PropertiesProperties Company presentation how can we help you? Contact us at the BAF Machine office nearest to you or submit a business inquiry online. contacts We were amazed by how little effort was required on our part to have ammunition line prepare these materials. We exchanged a few phone calls

Case Processing MachineMachinery Case Processing Machine has complete automatic system as well as having a PLC panel. It is designed to arrange the primed cartridge cases which were fired heretofore in order to be reloaded. It’s got the ability of sizing the cases, removing fired primers and swaging crimp from the primer pocket as well

Cleaning TumblerMachinery The cleaning tumbler is designed for degreasing and polishing especially the FMJ projectiles. The washing process of the components are done in the first drum, whereas the drying process is done in the second drum. This unit could also be used to deburr the lead cores. PropertiesProperties Pneumatic controlled feeding hopper From 25

Grooving & Mouth Trimming MachineMachinery This specific lathe machine is designated for grooving the cases as well as used for mouth trimming and chamfering with a simple switch of its machining tool. It includes a loading collator for loading cases to the rotating spindle. PropertiesProperties 2,2 kW Automatic Case Feeding 52-74 pcs/min Capacity 6 bar

Varnishing & Packaging MachineMachinery Primer seams and case mouths are varnished at the same time in this specific machine. Meanwhile, cartridges are dried by exposing to the UV light before they are carried to the packaging unit which is carried out and assigned according to the size of the boxes cartridges included. PropertiesProperties 5.5 kW

Visual Inspection MachineMachinery Visual inspection machine helps the operators to make certain whether the surface of the ammunition components are conforming to the quality standards in a way that the components are rotated by a chain conveyor so that the operator could inspect through the mirrors and lights that if any imperfections exist. PropertiesProperties Automatic
